shaft mounted speed reducers (S-M-S-R)
“INGECO” Shaft Mounted Speed Reducers are high quality products submitted to intense quality control and manufactured with the highest precision. “INGECO” SMSR is compact, totally enclosed and are designed for direct mounting to ensure positive drive and permanent alignment minimizing space requirement and layout problems.
Specifications:
- Ratios: Available in Single Stage (Ratio:5:1 ) & Double stage in Ratios of 13:1,15:1, 20:1 & 25:1.
- Power:Higher power ratings for maximum torque from 0.25 Kw to 100 Kw and upto 8000Nm.

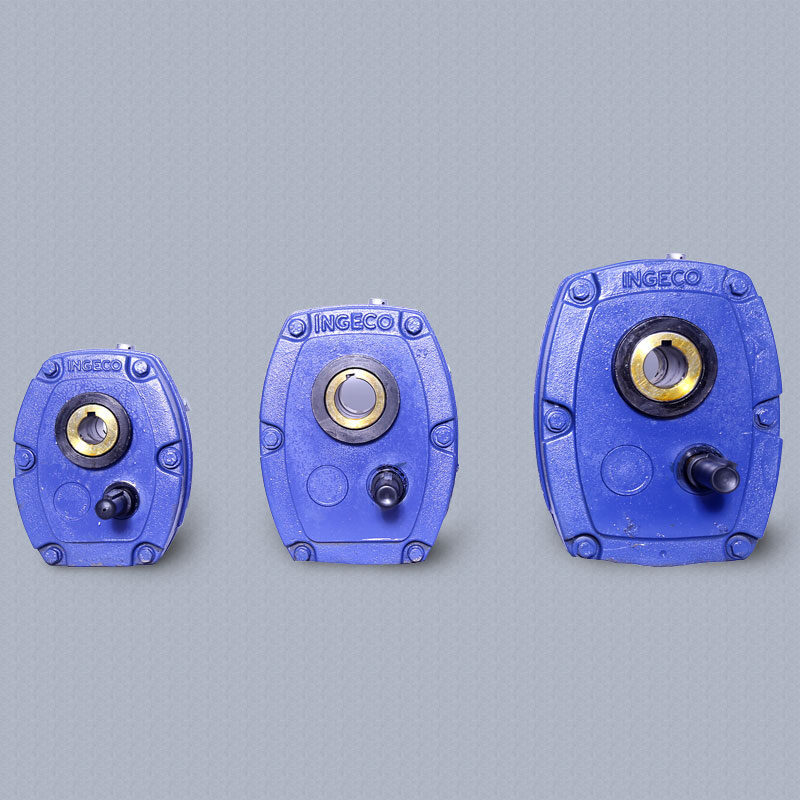

- Models: Available in 10 different Gear Case size from ‘AE’ to ‘KE’.
- Bore Sizes: 20 mm to 125 mm, imperial options also available.
- Mounts:Vertical, horizontal and direct drive mounting configurations.
- Lubrication: Oil splash type lubrication.
- Housing: Close grain cast iron case construction.
Product Features:

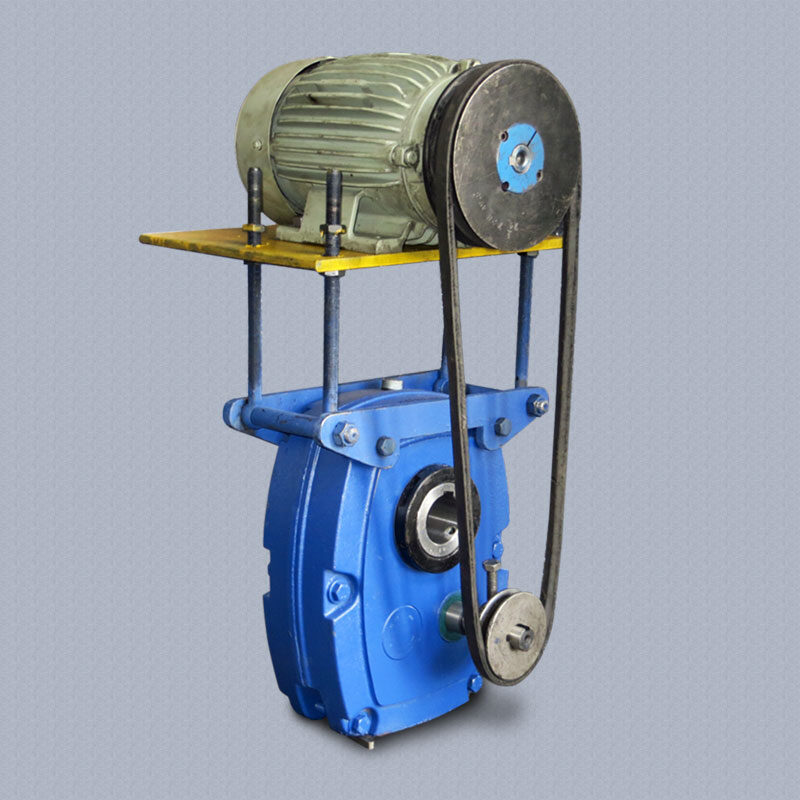

- Input Options: Chain, Coupling and Belt pulley.
- Output Options: Standard Hollow Shaft, Shrink Disc, Taper Bush.
- Accessories: Backstop, Torque Arm and Motor Mounting.
Applications and industries:

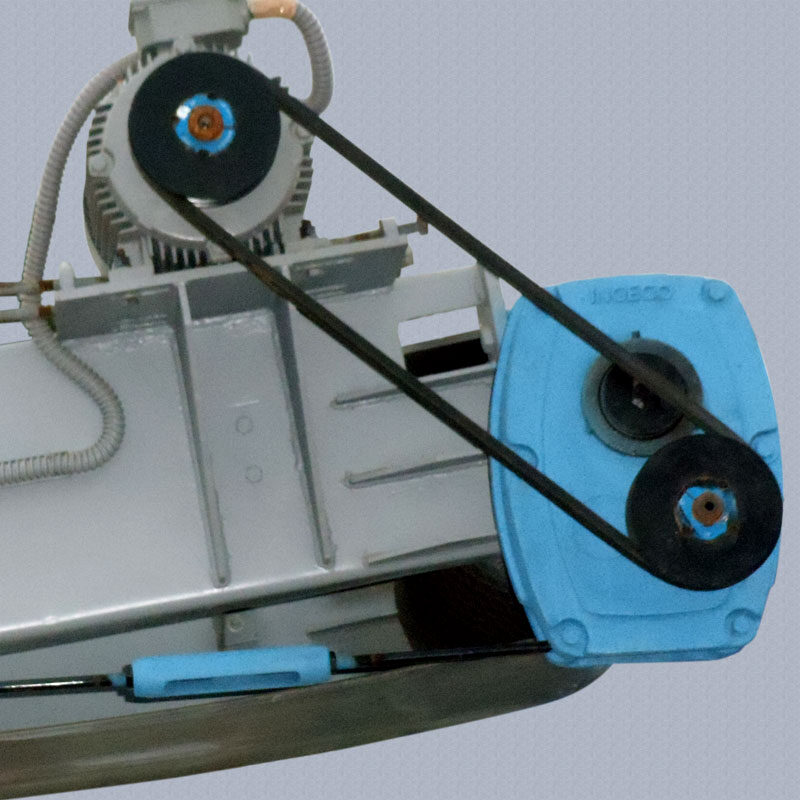

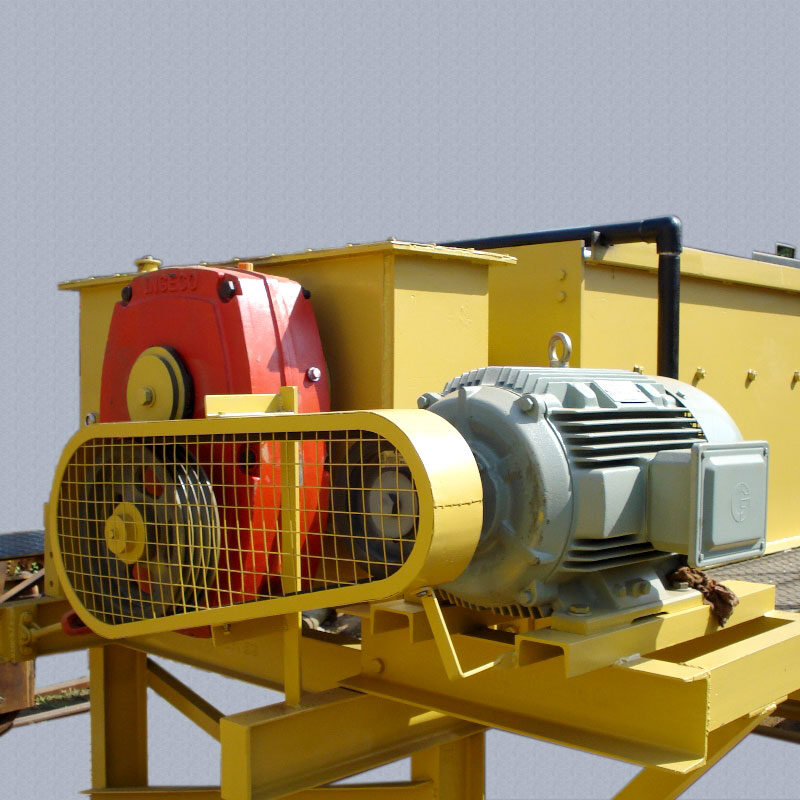

- Conveyors
- Mixers
- Special Purpose machines
- Road Construction
- Mining and Crushing
- Aggregate quarrying
- Textile machines
- Cement
Specifications
- Ratios: Available in Single Stage (Ratio:5:1 ) & Double stage in Ratios of 13:1,15:1, 20:1 & 25:1.
- Power: Higher power ratings for maximum torque from 0.25 Kw to 100 Kw and upto 8000Nm.
- Models: Available in 10 different Gear Case size from ‘AE’ to ‘KE’.
- Bore Sizes: 20 mm to 125 mm, imperial options also available.
- Mounts: Vertical, horizontal and direct drive mounting configurations.
- Lubrication: Oil splash type lubrication.
- Housing: Close grain cast iron case construction.
